CWS027 - OAM Panorama
This pedal was made for producer Will Yip to commemorate the making of the La Dispute album Panorama, which was released on March 22, 2019. The circuit was based on CWS008 which was used on nearly every guitar part on the record.
CWS014 - Tremolo Optical mod
Another tremolo based on the circuits found in CWS006, CWS007, CWS009, and CWS012. This circuit was modded with two switches, one to bring in extra depth, and another that switches in an optical component.
CWS011 - AB Amp Switcher
AB amp channel switcher built for live use with green (CH1) and red (CH2) LEDs. The switch will also work with any equipment that requires a TS connection using the channel 1 output.

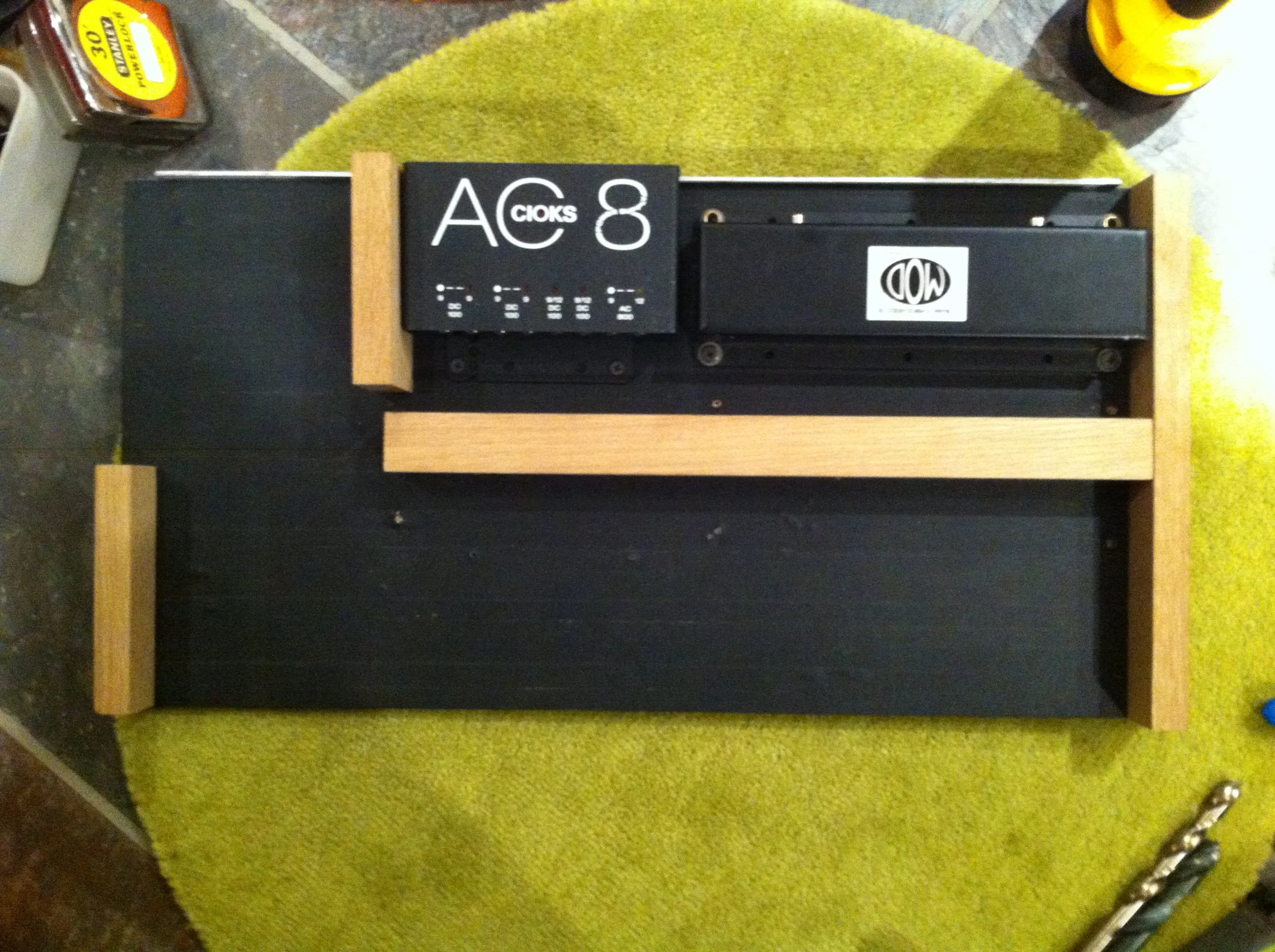

Project 002 - Pedal board build
I have a habit of tearing apart and rearranging my pedal board for just about every tour that I go on. Earlier this year, I had switched the entire board over to a 6-channel true bypass strip and ran all the pedals through this system. The signal chain went something like, Tuner -> Tremolo -> Boost -> Tape In -> Distortion -> Spring Reverb.
CWS010
Momentary A/B switch for switching two inputs to one output. This pedal was built specifically to switch a microcassette player into the signal path when the switch on the pedal was held down.
CWS008
Boost with six-way tone rotary switch.This pedal is yet another progression of the boost circuit found in pedals CWS001-CWS004, consisting of a volume and tone control. Instead of the continuous tone control as found in CWS004, this pedal has 6 different settings which are selectable with the 6-way rotary switch.
CWS006
Tremolo pedal based on EA tremolo design. This pedal was built fairly true to the circuit, with minor adjustments to the controls to give them a more preferable range.
CWS005
A/B switch built for La Dispute.
CWS004
Boost pedal built with military grade metal film resistors and Sprague orange drop capacitors. This pedal was built for personal use and combines all of the elements of CWS001, CWS002, and CWS003 that I preferred for use in my own set up.
CWS002
This is a dual JFET boost, using the mu-amp/minibooster circuit. The controls for this pedal are—a 2-way gain switch, volume knob, tone knob, and a 3-way bass switch.
